Product Details

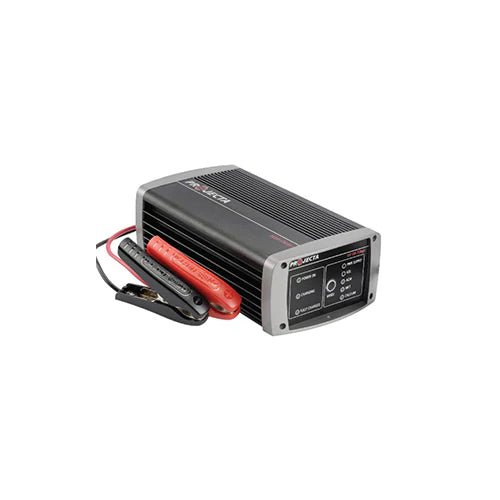

xProjecta Intelli-Charge 12V 7A 7 Stage Automatic Battery Charger – IC700
The IC700 is a premium-grade 7-stage smart battery charger, designed to maximize battery life and performance across a wide range of lead-acid battery types, including GEL, AGM, Wet Cell, and Calcium. Perfect for both professional users and those who demand advanced battery maintenance.
Key Features:
- Multi-Chemistry Charging: Optimized charging profiles for GEL, AGM, Wet Cell, and Calcium batteries.
- Float Charge Mode: Maintains batteries at 100% without overcharging, allowing indefinite connection.
- Power Supply Mode: Safely powers appliances directly or serves as a memory saver when disconnecting a vehicle battery.
- Polarity & Over-Temperature Protection: Spark-free reverse connection protection with temperature-controlled fan and cut-off safety.
- Switch Mode Technology: Compact, lightweight design with efficient power conversion.
Specifications:
| Model | IC700 |
|---|---|
| Voltage | 12V |
| Charging Current | 7A |
| Type | 7 Stage Automatic |
| Input | 240V AC 50Hz, 216W |
| Minimum Start Voltage | 2.5V |
| Back Drain | 1mA |
| Deep Cycle Range | 50–140Ah |
| Automotive Range | 300–800 CCA |
| Marine Range | 350–900 MCA |
| Battery Types | GEL, AGM, Wet Cell, Calcium |
| Dimensions (mm) | 182 × 61 × 108 |
| Weight | 0.95 kg |
| Warranty | 12 Months |
Charge Control Stages:
- Desulphation: High-frequency pulse charge up to 11V
- Soft Start: 3.5A up to 12V
- Bulk: 7A up to 14.1–14.7V (depending on chemistry)
- Absorption: Constant voltage until current drops to 1.05A
- Equalisation (Calcium only): 2.0A up to 16V, held for 60 min or 12-hour timeout
- Analysis: 90-second battery monitoring
- Recondition: 1.05A for 4 hours up to 14.1–16V (depending on chemistry)
- Float: 13.7V
Power Supply Mode:
- Set Voltage: 13.8V DC
- Max Current: 7A
