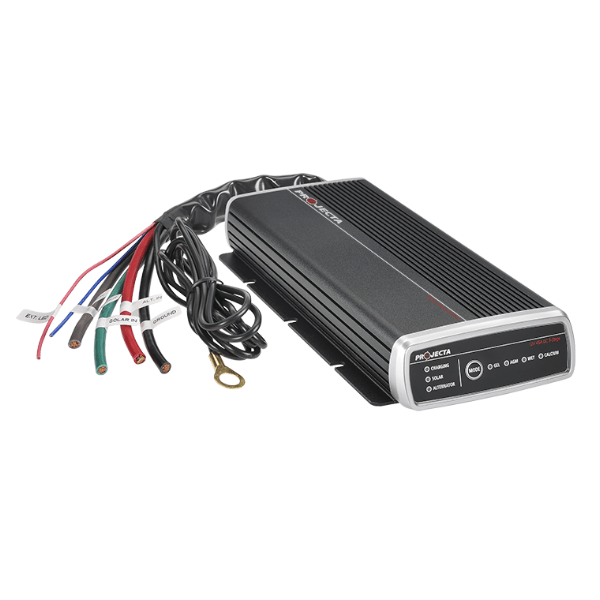

Projecta Automatic 9–32V 45A 3 Stage DC/Solar Battery Charger – IDC45

The IDC45 is a high-capacity DC/solar battery charger designed for demanding off-grid applications. It provides simultaneous charging from solar and alternator inputs, supports multiple battery chemistries, and includes temperature compensation for optimal battery performance.

Features

• 45A Solar MPPT: Efficient solar charging even in shaded areas
• Temperature Compensation: Maintains optimal charging in varying climates
• Multi-Chemistry Support: Wet, Calcium, AGM, and Gel batteries
• Simultaneous Solar and Alternator Charging: Charges both batteries at the same time
• Dual Charging Modes: Compatible with both smart and conventional alternators

Specifications

• Application: DC-DC Solar Battery Charger
• Input Voltage: 9–32V DC
• Output Current: 37A (Input 9–11V DC), 45A (Input 11–32V DC)
• Charge Control Voltage:
  • Gel: 14.1V
  • AGM: 14.4V
  • Wet: 14.7V
  • Calcium: 15.4V
• Smart Alternator Compatibility:
  • 12V Vehicle: Turn On 12.2–20V / Turn Off <11.9V
  • 24V Vehicle: Turn On 24.4–32V / Turn Off <24V
• Conventional Alternator Compatibility:
  • 12V Vehicle: Turn On 13.4–20V / Turn Off <12.8V
  • 24V Vehicle: Turn On 26.8–32V / Turn Off <25.6V
