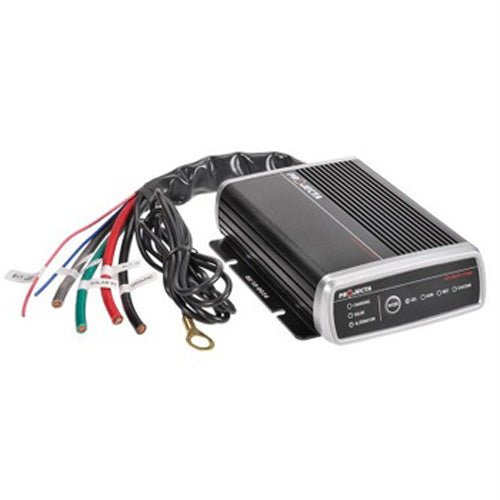

Projecta Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger - IDC25

Projecta Automatic 9–32V 25A 3 Stage DC/Solar Battery Charger – IDC25

The IDC25 is a sophisticated dual battery management system designed for 4WDs and camper trailers. It provides advanced 3-stage charging from both solar and alternator inputs simultaneously, ensuring reliable deep cycle battery maintenance even in tough environments.

Features

• Engine Bay Installation: Sealed to IP67, dust, splash, and shockproof, operates safely up to 80°C
• Dual Charging Modes: Compatible with both smart and conventional alternators
• Multi-Chemistry Support: Wet, Calcium, AGM, or Gel battery profiles
• Dual Input Operation: Charges from solar and alternator simultaneously
• Total Safeguard Protection: Over-temperature, reverse connection, over/under voltage, and spark-free protection

Specifications

• Part No: IDC25
• Charge Type: 3 Stage
• Alternator Input Voltage: 9–32V DC
• Max Solar Input: 23V DC, 385W
• Output Current: 20A (Input 9–11V DC), 25A (Input 11–32V DC)
• Back Drain on Auxiliary Battery: 9.5–10.5mA
• Charger Control Voltage:
  • Gel: 14.1V
  • AGM: 14.4V
  • Wet: 14.7V
  • Calcium: 15.4V
• Battery Capacity: 75–300Ah
• Batteries Supported: Gel, AGM, Wet & Calcium

Smart Alternator Compatibility:

• 12V Vehicle: Turn On 12.2–20V / Turn Off <11.9V
• 24V Vehicle: Turn On 24.4–32V / Turn Off <24V

Conventional Alternator Compatibility:

• 12V Vehicle: Turn On 13.4–20V / Turn Off <12.8V
• 24V Vehicle: Turn On 26.8–32V / Turn Off <25.6V
• Operating Temperature: –10°C to +80°C
