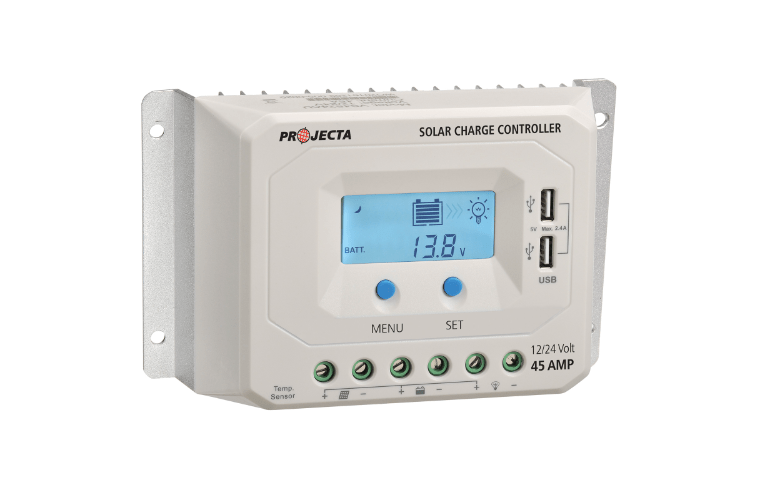

Projecta Automatic 12/24V 45A 4-Stage Solar Charge Smart Controller – SC245
The Projecta SC245 is designed for larger deep cycle battery banks, ideal for motor homes, houseboats, and remote shacks. Its advanced smart controller allows customization of charge settings to maximize battery life and performance.
Features:
- Digital LCD Screen: Displays battery voltage, charging current, capacity, fault codes, and more
- Dual USB Ports: 5V 2.4A USB ports for direct power from the controller
- Multi-Chemistry: Adjustable charging profile for Wet, AGM, Gel, or user-defined battery types
- Low Voltage Disconnect (LVD): Protects batteries from over-discharge with user-set disconnect points
- Temperature Sensor: Optimizes charge performance and provides additional protection; optional external sensor probe available
Specifications:
| SC245 | |
|---|---|
| Part No. | SC245 |
| Input Voltage | 12V or 24V |
| Max Input | 50VDC, 45A |
| Max Charge/Load | 45A |
| Max Panel Size | 540W (12V) |
| Battery | 12V or 24V |
| Charge Control | 4 Stage Charging |
| Bulk/Absorption/Gel/AGM/Wet Voltages | 12V: 14.2–14.8V, 24V: 28.4–29.6V |
| Equalisation | Gel/AGM: 14.6V / 29.2V, Wet: 14.8V / 29.6V |
| Float | 12V: 13.8V, 24V: 27.6V |
| Negative Switching | Yes |
| LVD Disconnect | 12V: Default 11.1V (User 9–17V), 24V: Default 22.2V (User 18–34V) |
| LVD Reconnect | 12V: Default 12.6V (User 9–17V), 24V: Default 25.2V (User 18–34V) |
| Approval | EMC |
| IP Rating | IP22 |
| Dimensions (mm) | 194 x 64 x 118 |
