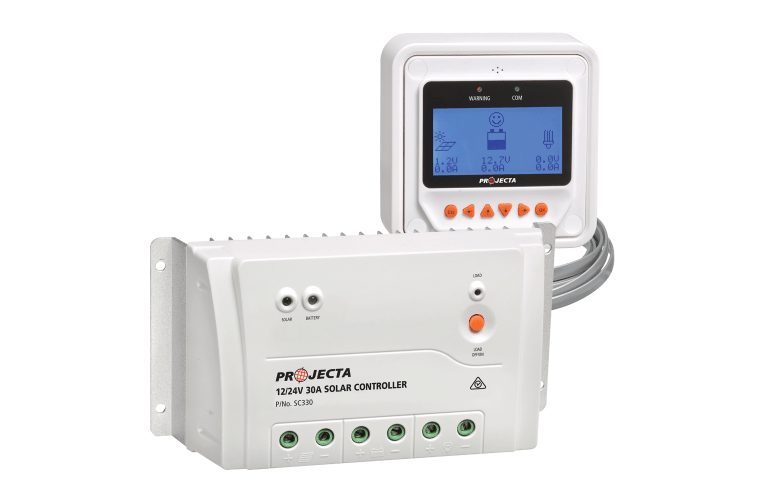

Projecta Automatic 12/24V 30A 4-Stage Solar Charge Premium Controller with Remote Control – SC330D
The SC330D is ideal for larger power requirements often found in motor homes, houseboats, or remote shacks. The sophisticated remote control provides full control, allowing the user to set a tailored charging profile and monitor battery and charging status.
Features:
- 4-Stage Automatic Charging: Bulk, absorption, equalisation, and float stages for optimal battery care
- Remote Control: Full monitoring and configuration of battery and charging status
- Multi-Chemistry Support: Wet, AGM, Gel, or custom user settings
- LED Status Indicators: Quick reference to charge and battery conditions
- Temperature Sensor: Optimises charge performance and offers additional protection (optional sensor probe available)
- Low Voltage Disconnect (LVD): Protects batteries from over-discharge with adjustable settings
Specifications:
| SC330D | |
|---|---|
| Part No. | SC330D |
| Input | 12V or 24V |
| Max Input | 50V DC, 30A |
| Max Charge/Load | 30A |
| Max Panel Size | 360W |
| Load Switching | Negative |
| Battery | 12V or 24V |
| Charge Control | 4-Stage Charging |
| Bulk Voltage | Gel: 14.2V / 28.4V |
| Absorption Voltage | AGM: 14.4V / 28.8V Wet: 14.6V / 29.2V |
| Equalisation Voltage | Gel: 14.6V / 29.2V AGM: 14.6V / 29.2V Wet: 14.8V / 29.6V |
| Float Voltage | 13.8V / 27.6V |
| LVD Disconnect | 12V: Default 11.1V, User Set 9–17V 24V: Default 22.2V, User Set 18–34V |
| LVD Reconnect | 12V: Default 12.6V, User Set 9–17V 24V: Default 25.2V, User Set 18–34V |
| Standby Current | 23.4mA |
| Approvals | EMC |
