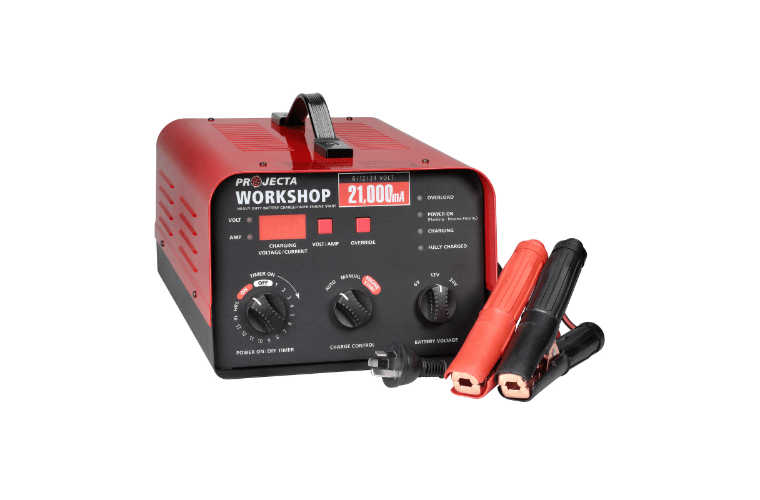

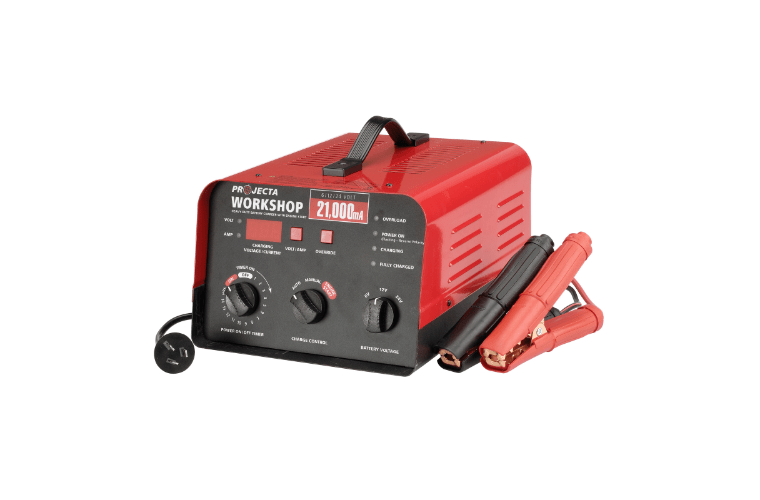

Projecta 6/12/24V Automatic & Manual 21A 2 Stage Battery Charger – HDBC35

The HDBC35 is designed for demanding environments such as heavy-duty transport and agriculture. It offers robust construction, ample power, and flexible charging options with multi-voltage operation, automatic or manual modes, and a 0–14 hour timer.

Features

• Multi-voltage: 6V, 12V, or 24V operation
• Automatic or manual charging modes
• Engine start function: 85A at 3.6V, 85A at 7.2V, 45A at 14.4V (5 cycles, 5 min on/5 min off)
• 0–14 hour timer with automatic shut-off
• 5-year warranty

Specifications

• Part No: HDBC35
• Type: 2 Stage Automatic & Manual
• Input: 240V, 50Hz, 636W
• Output Current: 21A at 6.3V, 21A at 12V, 13.5A at 26V
• Charge Voltage: Cut-out: 7.1V (6V), 14.2V (12V), 28.4V (24V); Cut-in: 6.7V (6V), 13.4V (12V), 26.8V (24V); Start: 0.0V
• Engine Start: 5 cycles (5 min on, 5 min off)
• Approvals: Electrical Safety, EMC

LED Charge Indication

• Red light flashing: Overload
• Second red light on: Power on
• Second red light flashing: Reverse connection
• Amber light on: Charging
• Green light on: Fully charged

LED Screen: Displays voltage/current

Battery Charge Times

• Automotive: 6V/12V/24V, 550–2000CCA → 4–10 hrs
• Marine: 6V/12V/24V, 700–2500MCA → 5–12 hrs
