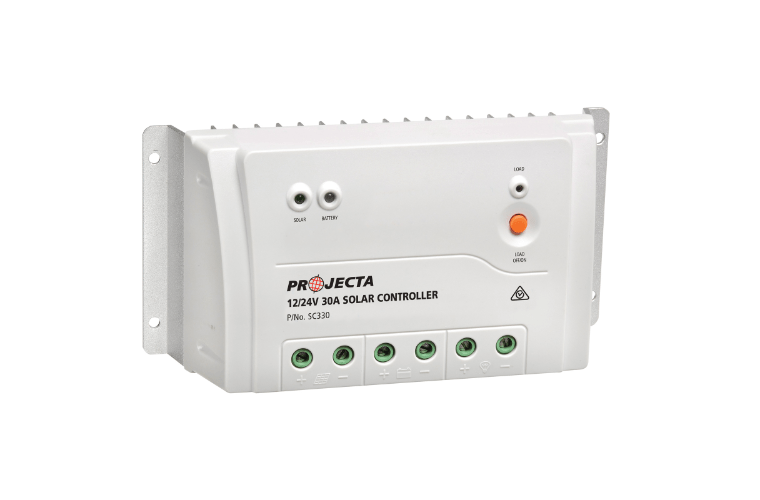

Projecta 30A 4-Stage Automatic Solar Charge Controller – SC330
The SC330 is designed for solar panels producing up to 30A, commonly used in caravans and remote setups. It features a multi-chemistry charge profile, built-in temperature sensor, and LED indicators for easy monitoring of battery and charge status. Manual load control allows switching the DC load directly from the controller. Low voltage disconnect (LVD) safeguards batteries from over-discharge.
Features:
- 4-Stage Automatic Charging: Bulk, absorption, equalisation, and float stages for optimal battery care
- Multi-Chemistry Support: Wet, AGM, Gel, or custom user settings
- LED Status Indicators: Quick reference to charge and battery conditions
- Manual Load Control: Switch DC load on/off directly from the controller
- Temperature Sensor: Optimises charge performance and provides added protection (optional sensor probe available)
- Low Voltage Disconnect (LVD): Protects batteries from over-discharge with adjustable settings
Specifications:
| SC330 | |
|---|---|
| Part No. | SC330 |
| Input | 12V or 24V |
| Max Input | 50V DC, 30A |
| Max Charge/Load | 30A |
| Max Panel Size | 360W |
| Load Switching | Negative |
| Battery | 12V or 24V |
| Charge Control | 4-Stage Charging |
| Bulk Voltage | 12V: 14.2V / 24V: 28.4V |
| Absorption Voltage | Gel: 14.4V / 28.8V AGM: 14.4V / 28.8V Wet: 14.6V / 29.2V |
| Equalisation Voltage | Gel: 14.6V / 29.2V AGM: 14.6V / 29.2V Wet: 14.8V / 29.6V |
| Float Voltage | 13.8V / 27.6V |
| LVD Disconnect | 12V: Default 11.1V, User Set 9–17V 24V: Default 22.2V, User Set 18–34V |
| LVD Reconnect | 12V: Default 12.6V, User Set 9–17V 24V: Default 25.2V, User Set 18–34V |
| Standby Current | 23.4mA |
| Approvals | EMC |
