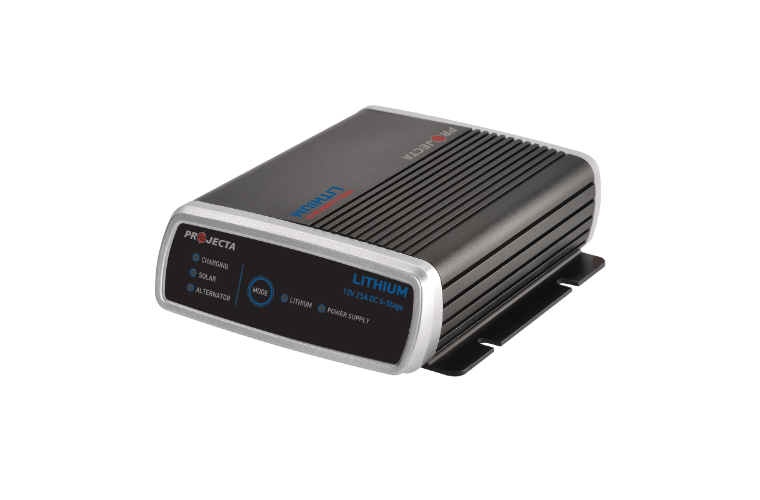

Projecta 25 Amp 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger - IDC25L

Projecta 25A 5 Stage Intelli-Charge 9–32V Lithium Dual Battery Charger – IDC25L

The IDC25L is an advanced DC/solar battery charger designed specifically for modern lithium iron phosphate (LiFePO4) batteries. It provides simultaneous dual battery charging from both solar and alternator inputs, with sophisticated protection and IP67-rated durability for extreme environments.

Features

• Lithium Charging Technology: Engineered for advanced lithium battery systems
• Engine Bay Installation: IP67 dust, splash, and shockproof, operating safely up to 80°C
• Dual Input Operation: Charges from solar and alternator simultaneously
• Safeguard Protection: Over-temperature, reverse connection, over/under voltage, and spark-free protection
• 5-Year Warranty

Specifications

• Part No: IDC25L
• Charge Type: 5 Stage
• Alternator Input Voltage: 9–32V DC
• Max Solar Input: 28V DC, 360W
• Output Current: 20A (Input 9–11V DC), 25A (Input 11–32V DC)
• Back Drain on Auxiliary Battery: 9.5–10.5mA
• Charging Profile:
  • 1st Soft Start: 1.25A
  • 2nd Soft Start: 6.25A
  • Bulk Charge Current: 25A
  • Absorption Voltage: 14.5V
  • Float Voltage: 13.5V
• Battery Capacity: 50–250Ah
• Batteries Supported: Lithium Iron Phosphate (LiFePO4)

Smart Alternator Compatibility:

• 12V Vehicle: Turn On 12.2–20V / Turn Off <11.9V
• 24V Vehicle: Turn On 24.4–32V / Turn Off <24V

Conventional Alternator Compatibility:

• 12V Vehicle: Turn On 13.4–20V / Turn Off <12.8V
• 24V Vehicle: Turn On 26.8–32V / Turn Off <25.6V
• Operating Temperature: –10°C to +80°C
