Product Details

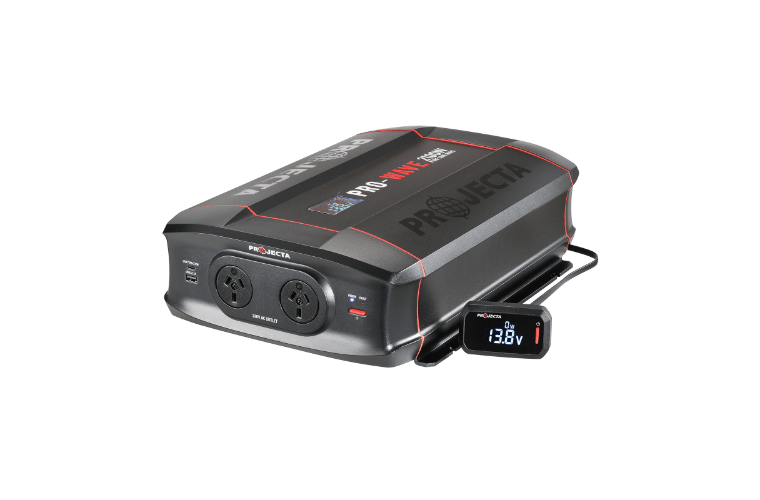

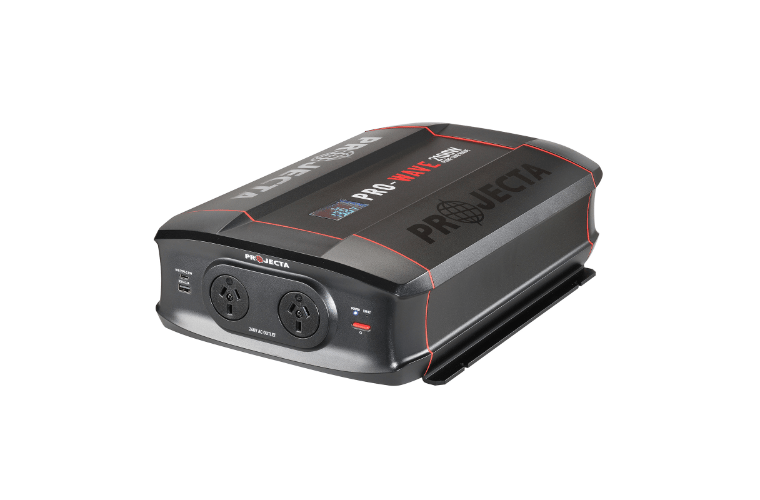

xProjecta 12V / 24V 2100W Pure Sine Wave Inverter – PW2100
The Projecta PW2100 is a high-power inverter available in 12V or 24V models, capable of handling 4200W startup loads to power demanding 240V appliances such as toasters, kettles, and air conditioners. Ideal for caravans, trade vehicles, and off-grid applications.
Features:

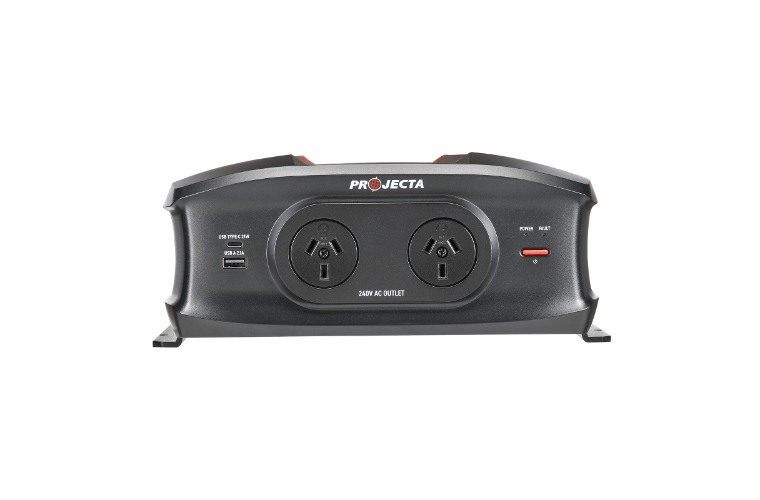

- Approved Output Socket: AS/NZS approved 240V sockets, compliant with Australian standard AS4763
- Digital Display: LED display provides information on battery voltage, power usage, and load capacity
- USB Output Socket: USB-A 2.1A and USB-C 21W ports for charging mobile and portable devices
- Remote Control & Wiring Kit: LCD display and remote unit for monitoring battery and power usage; includes battery lugs with 1100mm 35mm² battery cable
Specifications:
| 12V | 24V | |
|---|---|---|
| Part No. | PW2100 | PW2100-24 |
| Input | 12V DC, 206A Max | 24V DC, 103A Max |
| No Load Current Draw | <1.2A | <1.2A |
| Output | 240V AC, 50Hz (Pure Sine Wave) | 240V AC, 50Hz (Pure Sine Wave) |
| Output Power | 2100W Continuous, 2520W 120% surge ≤10 min, 4200W 200% surge <1 sec | 2100W Continuous, 2520W 120% surge ≤10 min, 4200W 200% surge <1 sec |
| Inverter Classification | Equipotentially Bonded (EPB) | Equipotentially Bonded (EPB) |
| Efficiency | 85% | 85% |
| Low Battery Alarm | 10.5V ±0.3V | 21V ±0.6V |
| Shutdown | 9.9V ±0.3V | 19.8V ±0.6V |

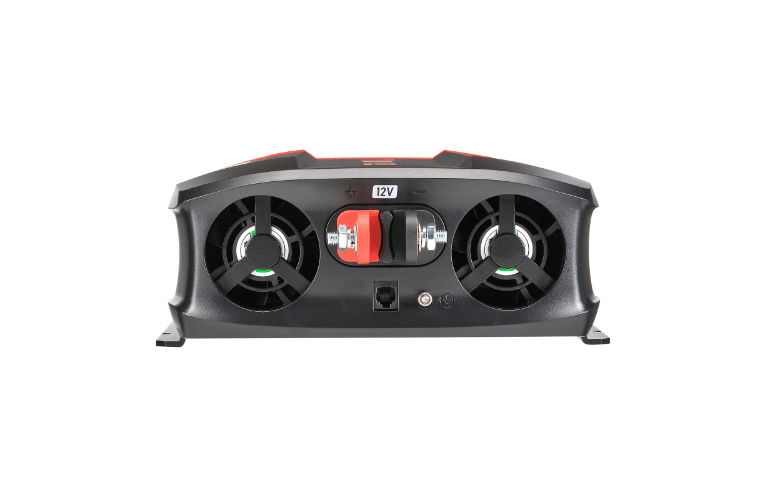

| Cooling Fan | Automatic Temperature & Load Controlled | Automatic Temperature & Load Controlled |
| Thermal Shutdown | 65°C ±5°C | 65°C ±5°C |
| Internal Fuse | 280A | 175A |
| Recommended External Fuse | 250A | 125A |
| USB Output | USB-C 21W, USB-A 2.1A | USB-C 21W, USB-A 2.1A |
| Ideal Battery Size | 110Ah and above | 70Ah and above |
| Minimum Battery Size | 105Ah | 55Ah |
| Run Time with 500W Load on 25Ah Battery | 30 minutes | 30 minutes |
| Run Time with 100W Globe on 25Ah Battery | 10 hours | 10 hours |
| Approvals | Electrical Safety, EMC | Electrical Safety, EMC |
