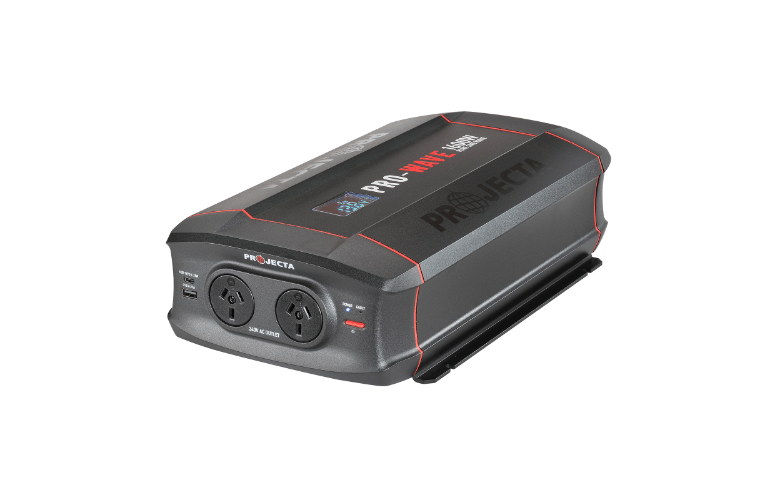

xProjecta 12V 1600W Pure Sine Wave Inverter – PW1600
The Projecta PW1600 features dual AC outlets and class-leading performance, making it ideal for running multiple appliances simultaneously. Its high surge capacity and sophisticated design make it suitable for caravans, trade vehicles, and remote locations.
Features:

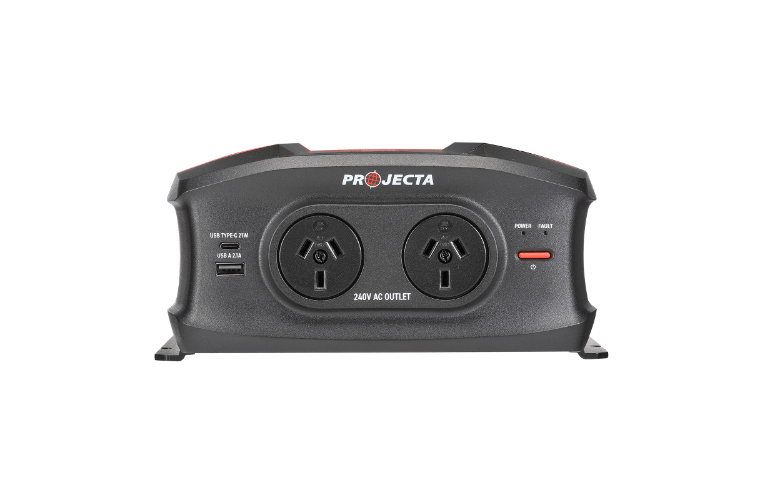

- Approved Output Socket: AS/NZS approved 240V sockets, compliant with Australian standard AS4763
- Digital Display: LED display provides information on battery voltage, power usage, and load capacity
- USB Output Socket: USB-A 2.1A and USB-C 21W ports for charging mobile and portable devices

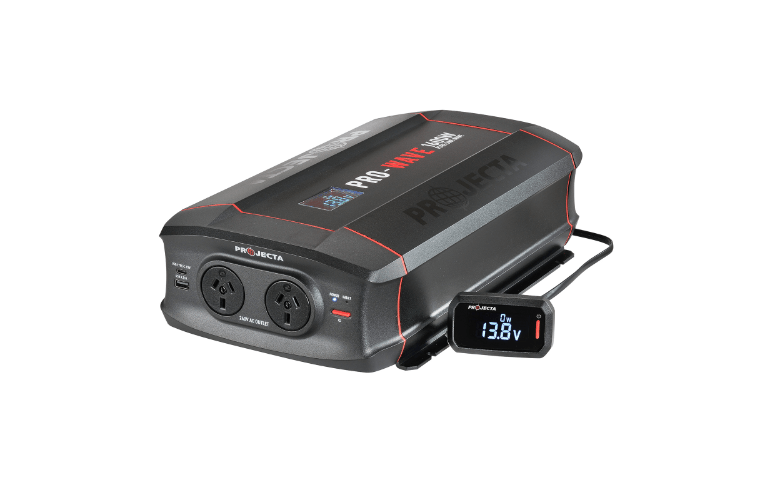

- Remote Control & Wiring Kit: LCD display and remote unit for monitoring battery and power usage; includes battery lugs with 1100mm 25mm² battery cable
Specifications:
| Part No. | PW1600 |
| Input | 12V DC, 157A Max |
| No Load Current Draw | 1.2A |
| Output | 240V AC, 50Hz (Pure Sine Wave) |
| Output Power | 1600W Continuous, 1920W 120% surge ≤10 min, 3200W 200% surge <1 sec |
| Inverter Classification | Equipotentially Bonded (EPB) |
| Efficiency | 85% |
| Low Battery Alarm | 10.5V ±0.3V |
| Shutdown | 9.9V ±0.3V |
| Cooling Fan | Automatic Temperature & Load Controlled |
| Thermal Shutdown | 65°C ±5°C |
| Internal Fuse | 200A |
| Recommended External Fuse | 175A |
| USB Output | USB-C 21W, USB-A 2.1A |
| Ideal Battery Size | 105Ah and above |
| Minimum Battery Size | 80Ah |
| Run Time With 500W On 25Ah Battery | 30 minutes |
| Run Time With 100W Globe On 25Ah Battery | 8 hours |
| Approvals | Electrical Safety, EMC |
