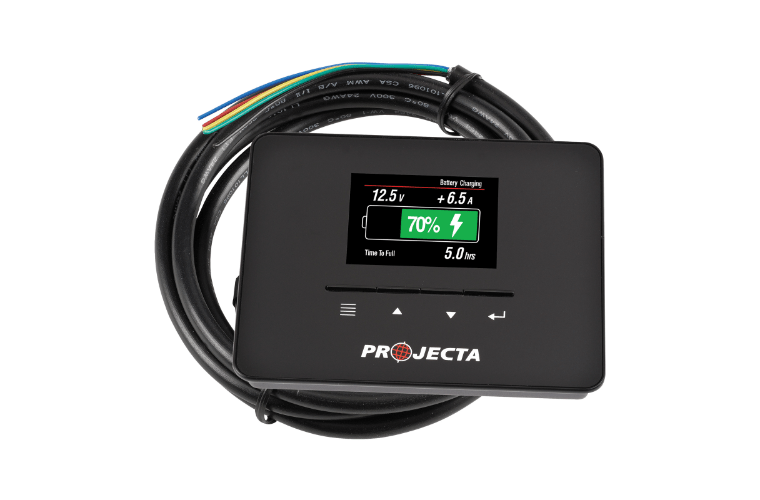

Projecta 12V Smart Battery Gauge - BM320

Projecta 12V Smart Battery Gauge – BM320

The BM320 is a sophisticated, full-colour LCD battery monitor designed to accurately display your battery’s total capacity, overall health, and status. Perfect for camper trailers and caravan interiors, it ensures you stay informed and in control of your battery performance.

Key Features:

• 2.4" High-Intensity LCD Screen – Displays predicted state of charge, battery health, time to full charge, and time to empty.
• Installation Kit Included – Comes with a 500A shunt and terminals for professional installation.
• Total User Control – Easy navigation buttons with programmable low battery and health alarms.
• Pre-Wired Harness – 1.5m harness with 4-pin connector for straightforward installation.
• Easy Mounting – Surface mount installation with supplied ‘click-fit’ mounting bracket.

• Model No: BM320
• Voltage Range: 6.0–17.0V DC
• Max Current: 320A
• Supported Capacity: 5–320Ah
• Battery Types: Wet, AGM, Gel, Calcium
• Current Draw: 12V/1.5mA DC
• Cable Length: 1.5m
• Display Resolution: 0.1A (current), 0.1V (voltage), 0.1Ah (capacity)
• Weight: 1 kg
• Protection: Reverse polarity, input over-voltage (17V), minimum voltage 6V
