xProjecta 12V 2000W Intelli-Wave Pure Sine Wave Inverter – IP2000

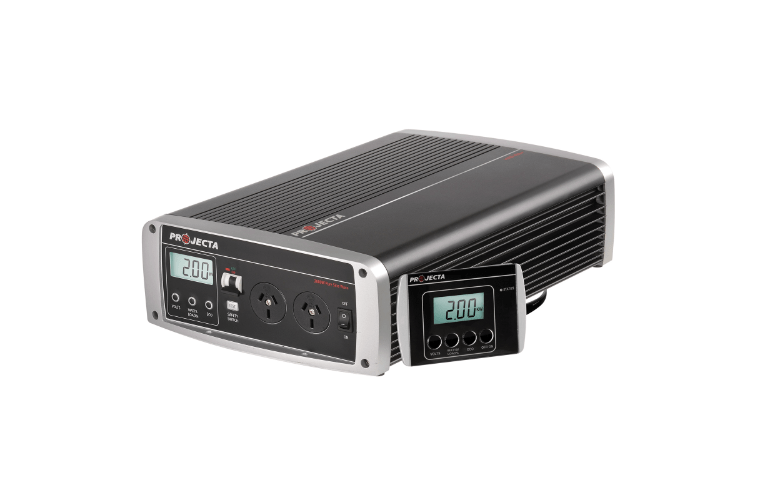

The Projecta IP2000 is the most powerful pure sine wave inverter in the Intelli-Wave range, delivering ultra-clean power for demanding applications such as houseboats, motor homes, and caravans. It features a sophisticated AC transfer switch, RCD protection, remote monitoring, and an eco-mode to extend battery run time.
Features
- Approved Output Socket: AS/NZS approved 240V socket, meeting Australian standard AS4763
- Safety Cut-Out Switch (RCD): Provides absolute protection for user and devices
- Remote Control & LCD Display: Monitors battery voltage, power usage, and load capacity
- Eco Mode: Reduces power consumption and extends battery runtime
- 5-Year Warranty: Ensures long-term reliability and durability
Specifications
| Feature | 12V Version | 24V Version |
|---|---|---|
| Part No. | IP2000 | IP2000-24 |
| Input | 12V DC (9.75–15.5VDC) | 24V DC (19.5–31.0VDC) |
| Input Current (Max DC Amps) | 200A | 100A |
| No Load Current Draw | 10mA Eco | 10mA Eco |
| Eco Mode Sleep/Wake | <1W / >6W | <1W / >6W |
| Output | 240V AC, 50Hz (Pure Sine Wave) | 240V AC, 50Hz (Pure Sine Wave) |
| Output Power | 2000W Continuous, 2800W 140% surge <3 min, 4000W 200% surge <3 sec | 2000W Continuous, 2800W 140% surge <3 min, 4000W 200% surge <3 sec |
| Inverter Classification | RCD Protected Inverter | RCD Protected Inverter |
| Efficiency | 85–90% | 85–90% |
| Low Battery Alarm | 10.25V | 21.0V |
| Shutdown | 9.75V (±0.2V) | 19.5V (±0.2V) |
| Cooling Fan | Automatic temperature controlled | Automatic temperature controlled |
| Thermal Shutdown | 65°C (±5°C) | 65°C (±5°C) |
| Fuse | 350A Megafuse | 350A Megafuse |
| Ideal Battery Size | 100–400Ah | 75–250Ah |
| Minimum Battery Size | 100Ah | 75Ah |
| Run Time with Full Load (2000W) | 30 minutes on 100Ah / 50Ah battery | 30 minutes on 50Ah battery |
| Run Time with 100W Globe | 10 hours on 100Ah / 50Ah battery | 10 hours on 50Ah battery |
| Approvals | Electrical Safety, EMC, AS4763 | Electrical Safety, EMC, AS4763 |
