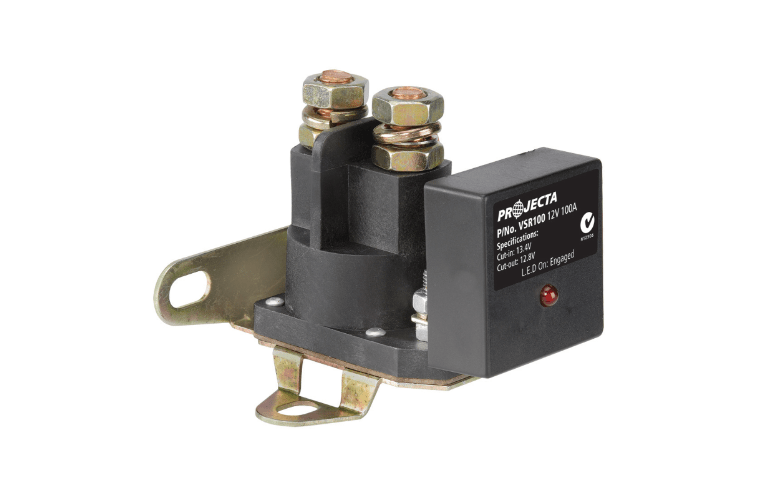

Projecta 12V 100A Voltage Sensitive Relay - VSR100

Projecta 12V 100A Voltage Sensitive Relay – VSR100

The Projecta VSR100 is a reliable power management controller ideal for a wide range of 12V DC applications, such as winching and dual battery systems. It automatically manages charging between batteries to protect your vehicle’s electrical system.

Features

• Manages dual battery charging automatically (12V systems)
• Built-in surge protection for electronic safety
• Fast cut-in/cut-out response for efficient power management
• Robust and weather-resistant design (IP66)

Specifications

• Voltage: 12V
• Charging Current: 100A Continuous, 200A Peak

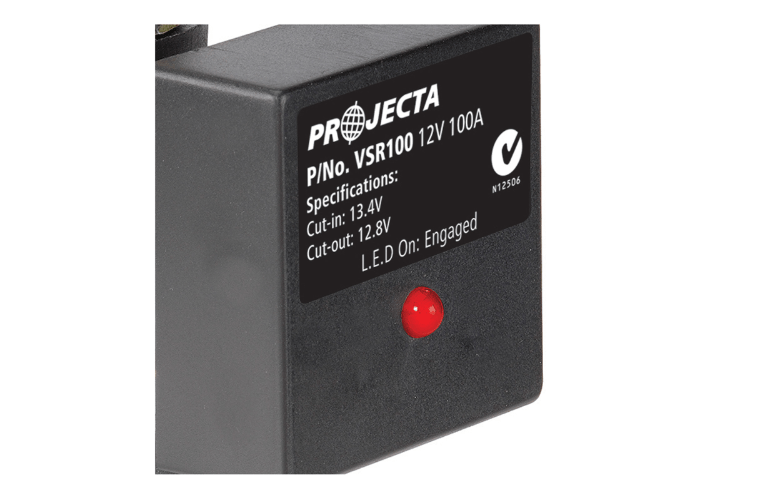

• Cut-In Voltage: 13.4V / Cut-Out Voltage: 12.8V
• Mounting: Surface or firewall
