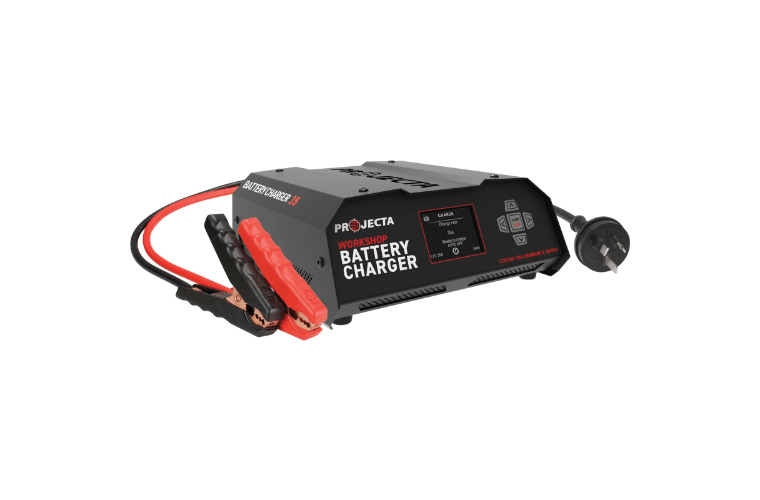

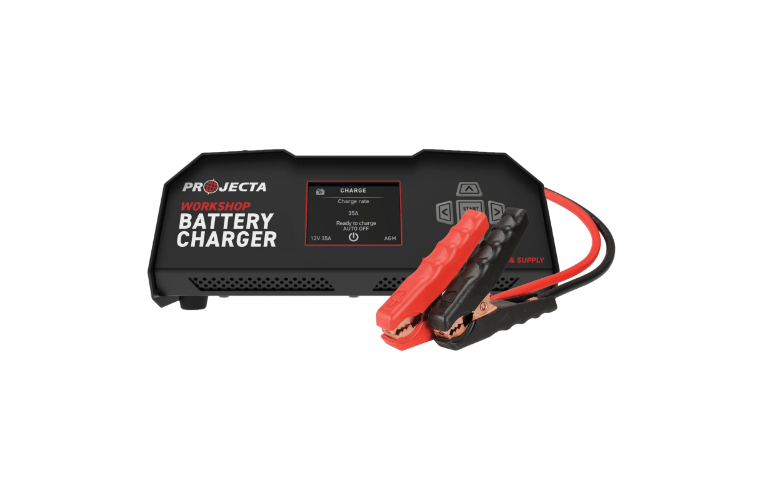

Projecta 12/24V 35a Automatic Battery Charger - HDBM35

Projecta 12/24V 35A Automatic Battery Charger – HDBM35

The HDBM35 is an advanced all-in-one battery management solution for 12V and 24V systems. It supports multiple chemistries, features a 35A power supply, sophisticated testing and diagnostics, and adjustable charging profiles, making it ideal for workshops and professional use.

Features

• Customisable charge profile for Lead Acid, Wet, Calcium, AGM, Gel, EFB, and Lithium batteries
• 35A power supply mode for diagnostics, recalibration, and showroom display
• Testing & diagnostics: tests alternator faults, starting capacity, and voltage levels
• Adjustable output for various battery sizes
• Heavy-duty 3m charging lead with quick-release copper clamps
• 5-year warranty

Specifications

• Part No: HDBM35
• Type: 9 Stage Automatic (5 Stage Lithium)
• Input: 220–240VAC, 50Hz
• Output Current: 1–35A (adjustable)
• Charge Voltage:
  • 12V: Gel 14.1V, AGM 14.4V, Wet 14.7V, EFB 14.5V, Lithium 14.2V
  • 24V: Gel 28.2V, AGM 28.8V, Wet 29.4V, EFB 29.0V, Lithium 28.8V
• Float Voltage: 13.6V (12V), 27.2V (24V)
• Start Voltage: 1V (12V), 17.5V (24V)
• Back Drain: 1mA
• Showroom Mode: 12.6V–14.5V
• Approvals: Electrical Safety, EMC

Battery Charge Times

• Automotive: 42–4200CCA → 7–24 hrs
• Marine: 55–5800MCA → 7–24 hrs
• Deep Cycle: 7–700Ah → 7–24 hrs
• Lithium: 2–700Ah → 2–20 hrs
