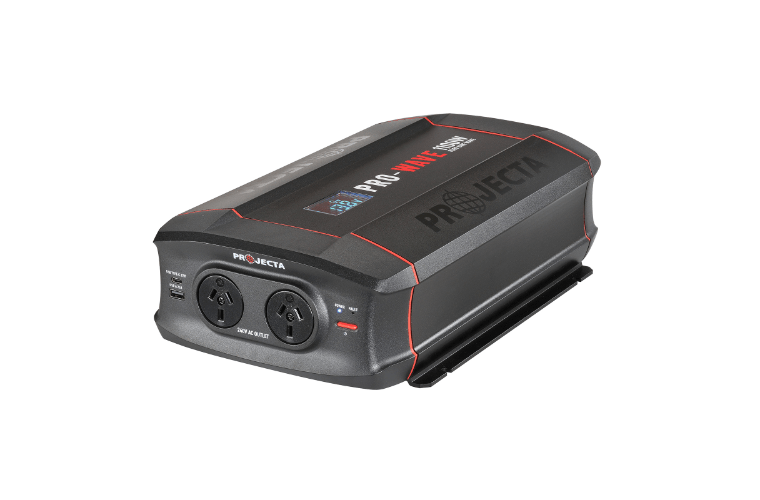

xProjecta 12V 1100W Pure Sine Wave Inverter – PW1100
The Projecta PW1100 is a feature-packed 12V pure sine wave inverter, ideal for powering lightweight household appliances and sensitive electronics. Its higher starting power compared to modified sine wave inverters allows it to handle appliances with larger initial power draws.
Features:

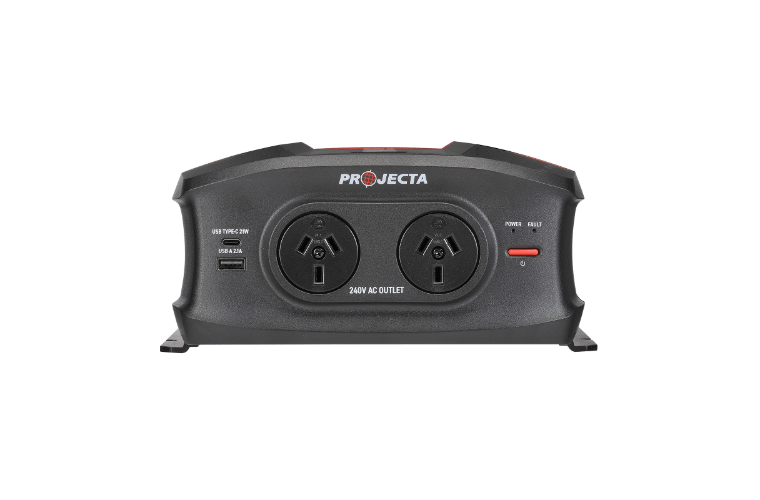

- Approved Output Socket: AS/NZS approved 240V socket, compliant with Australian standard AS4763
- Digital & USB Outputs: LED display for battery and load monitoring; USB-A 2.1A and USB-C 21W for charging devices

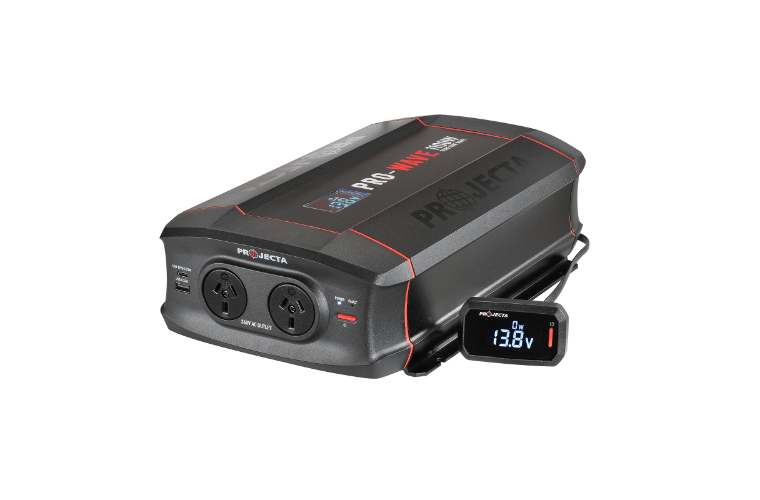

- Remote Control: LCD display provides real-time monitoring of battery voltage and power usage

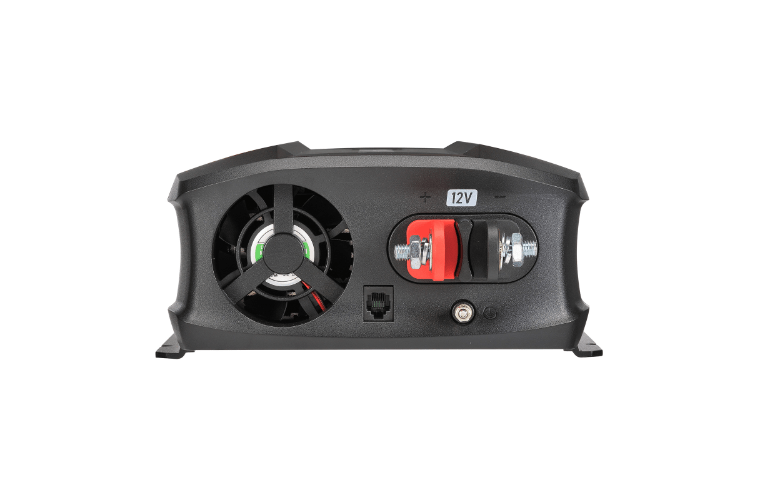

- Reliable & Safe: Equipotentially bonded inverter with automatic temperature/load-controlled cooling fan
Specifications:
| Part No. | PW1100 |
| Input | 12V DC, 108A Max |
| No Load Current Draw | <1.0A |
| Output | 240V AC, 50Hz (Pure Sine Wave) |
| Output Power | 1100W Continuous, 1320W 120% surge ≤10 min, 2200W 200% surge <1 sec |
| Inverter Classification | Equipotentially Bonded Inverter (EPB) |
| Efficiency | 85% |
| Low Battery Alarm | 10.5V ±0.3V |
| Shutdown | 9.9V ±0.3V |
| Cooling Fan | Automatic temperature & load controlled |
| Thermal Shutdown | 65°C ±5°C |
| Internal Fuse | 150A |
| Recommended External Fuse | 125A |
| USB Output | USB-C 21W, USB-A 2.1A |
| Ideal Battery Size | 75Ah and above |
| Minimum Battery Size | 55Ah |
| Run Time with 500W Load on 25Ah Battery | 30 minutes |
| Run Time with 100W Globe on 25Ah Battery | 5.5 hours |
| Approvals | Electrical Safety, EMC |
