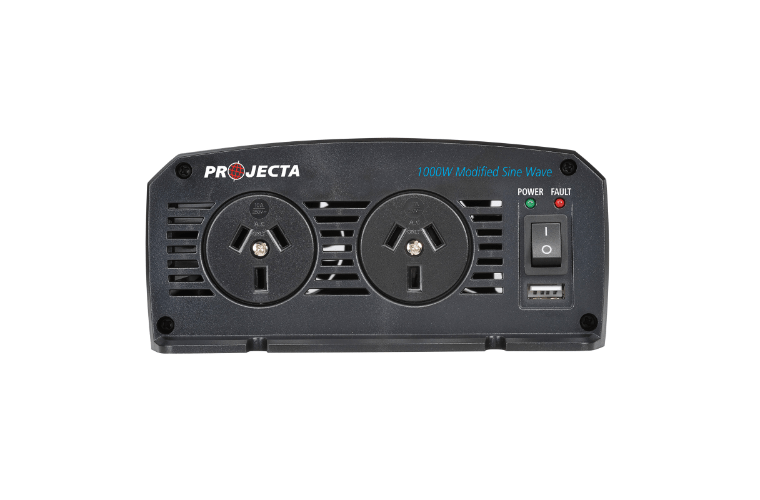

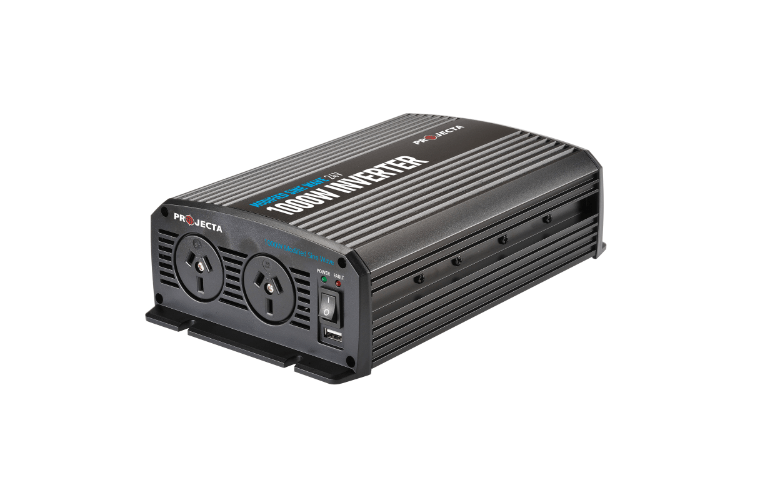

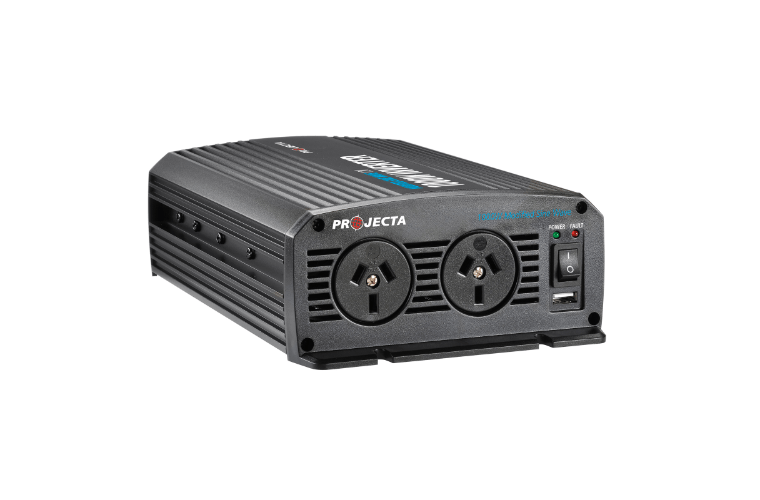

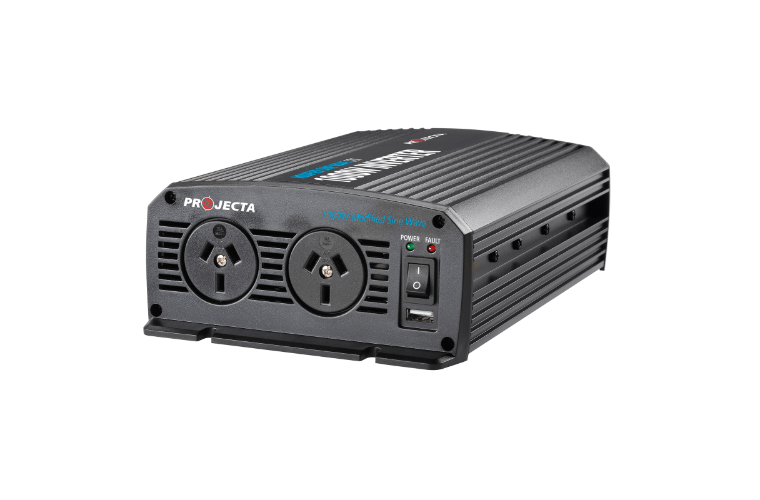

xProjecta 1000W 12V Modified Sine Wave Inverter – IMW1000
The Projecta IMW1000 provides reliable power for demanding appliances, making it ideal for off-grid work, camping, or recreational use. It features twin 240V sockets, a USB output for charging devices, and an efficient temperature-controlled cooling system. Built with safety and durability in mind, this inverter includes LED indicators, audible fault alarms, and comes with a 1-year warranty.
Features
- Twin Power Sockets: AS/NZS approved 240V sockets, meeting Australian standard AS4763
- USB Output Socket: 5V 2.1A port for charging mobile devices
- LED Indicators: Power and fault lights with audible alarms if a fault is detected
- Efficient Design: Automatic temperature-controlled cooling fan
- 1 Year Warranty: Ensures durability and peace of mind
Specifications
| Feature | 12V Version | 24V Version |
|---|---|---|
| Part No. | IMW1000 | IMW1000-24 |
| Input | 12V DC, 104A Max | 24V DC, 52A Max |
| No Load Current Draw | ≤ 0.40A | ≤ 0.40A |
| Output | 230V AC, 50Hz (Modified Sine), USB A 5V 2.1A | 230V AC, 50Hz (Modified Sine), USB A 5V 2.1A |
| Output Power | 1000W Continuous (2000W Peak <0.5 sec) | 1000W Continuous (2000W Peak <0.5 sec) |
| Inverter Classification | Equipotentially Bonded (EPB) | Equipotentially Bonded (EPB) |
| Efficiency | ≥ 85% | ≥ 85% |
| Low Battery Alarm | 10.5V | 21V |
| Shutdown | 9.5V | 19V |
| Cooling Fan | Automatic temperature controlled | Automatic temperature controlled |
| Thermal Shutdown | 65°C ±5°C | 65°C ±5°C |
| Fuse | 3 x 40A | 3 x 20A |
| Ideal Battery Size | 75–250Ah | 50–130Ah |
| Minimum Battery Size | 50Ah | 25Ah |
| Run Time with 1000W | 30 minutes (50Ah battery) | 30 minutes (25Ah battery) |
| Run Time with 100W | 5 hours (50Ah battery) | 5 hours (25Ah battery) |
| Warning Alarm | LED & Audible alarm indicates a fault | LED & Audible alarm indicates a fault |
| Approvals | Electrical Safety, EMC, AS/NZS4763 | Electrical Safety, EMC, AS/NZS4763 |
