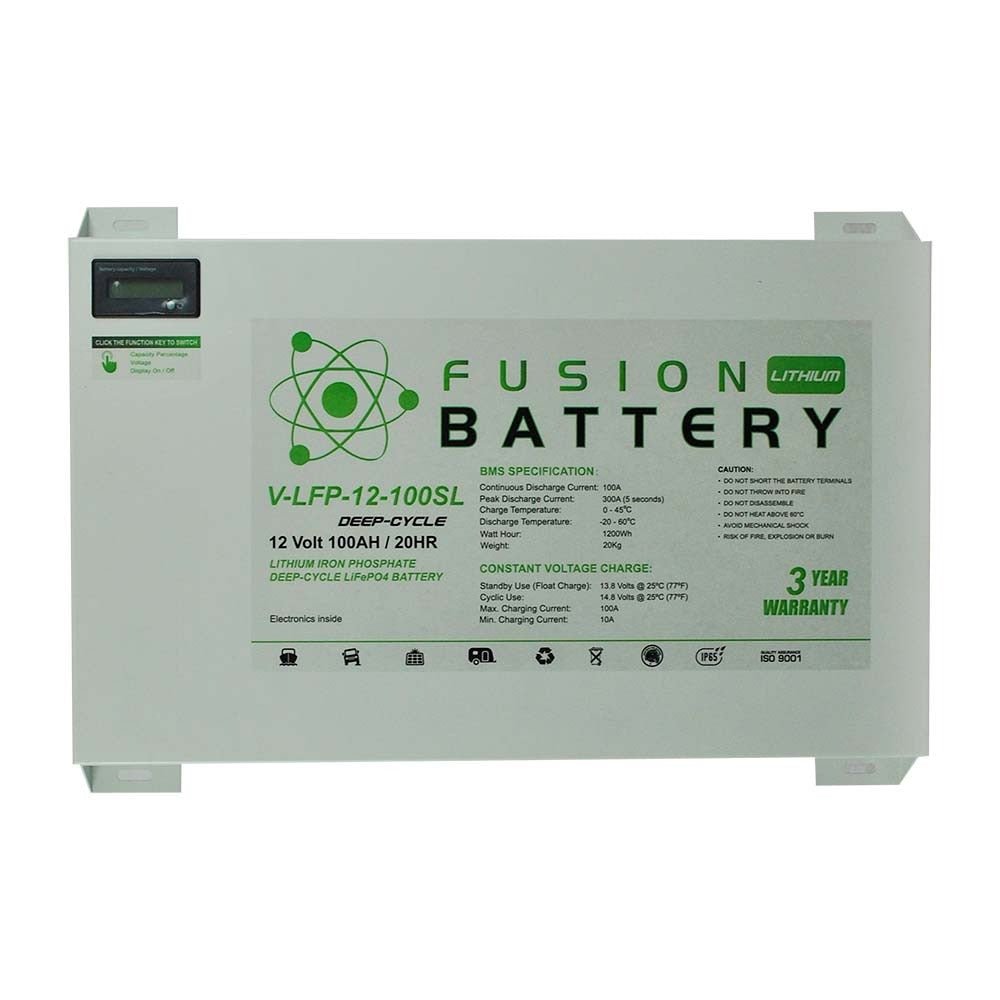

Fusion Lithium Slim line 12V Deep Cycle Battery- V-LFP-12-100SL

Fusion Lithium Core Battery

Australia’s Leader in Lithium Technology

Fusion Lithium batteries deliver safe lithium phosphate energy storage solutions in standard lead-acid battery sizes for a wide variety of applications. They are designed as a direct drop-in replacement for similar-sized lead-acid batteries offering twice the run time and less than half the weight. Fusion Lithium Phosphate Batteries are extremely lightweight batteries designed for deep-cycle (cyclic) applications. They are completely dry batteries, making them spill-proof, and leak-proof.

Fusion Lithium batteries have an extremely low self-discharge rate. This means they have a longer shelf life when compared to lead-acid batteries and others Lithium brands.

Fusion Lithium Batteries is the pioneer of lithium deep-cycle batteries in Australia. Our industry-leading advancements in lithium technology have made us the benchmark for lithium deep-cycle technology worldwide. With a major focus on research and development, Fusion Lithium Batteries have been designed to be superior in every aspect. Our lithium batteries are the lightest yet most powerful lithium batteries in the world. They’re available in 12V to 36V, with AH variations including 6 AH to 100 AH to 300 AH.

Fusion Lithium Batteries can be charged using standard 3-Stage AGM smart chargers.

• Available in 12V, 24V, 36V
• Ultra-Light Weight - 1/3 of normal lead-acid battery
• Long Shelf Life - Minimal self-discharge
• Extremely Quick Recharge Time - Can be safely recharged with high current charge rates
• Can be charged with standard 3-Stage AGM smart charges and alternators
• Built-in Battery Management System (BMS)
• Best Built-in Automatic Protection from Over Charge, Over Discharge and Over Temperature
• Direct Drop-in Replacement for Lead Acid Batteries - With considerably longer runtime
• Safe to Use - The battery cannot explode or catch fire under normal operating conditions
• Longer Service Life - Thousands of cycles at 100% DOD under normal conditions
• Superior Design and Quality - Manufactured to Quality Assurance Standard ISO 9001
• High Energy Efficiency - Higher voltage resulting in a boost in performance
• HR Series for extreme heat conditions
• Custom Options are available, enquiries within
• Fusion Lithium are a Pioneer and the Benchmark for 12V and 24V LiFePo4 Batteries in Australia
• Dry Cell Battery - No leaks or spills
• Longest Run-time

Fitment Guide:

• Length: 495 mm
• Width: 350 mm
• Height: 60 mm
• Height with Spacer: –
• Terminal Height: 60 mm
• Weight: 15 kg
• Terminal Type: Anderson
• Terminal Assembly: –

Technical Specifications:

• Voltage: 12 V
• CCA: –
• Reserve Capacity: –
• AH (20HR): 100
• AH (100HR): –
• Minimum Charge (A): 10
• Maximum Charge (A): 100
• Maximum Temperature: 60°C

Battery Details:

• Part Number: V-LFP-12-100SL
• Battery Type: Lithium Iron Phosphate
• Separator Type: Plate Type
• Range: Fusion Lithium
• Warranty: –ySee Warranty Guide
