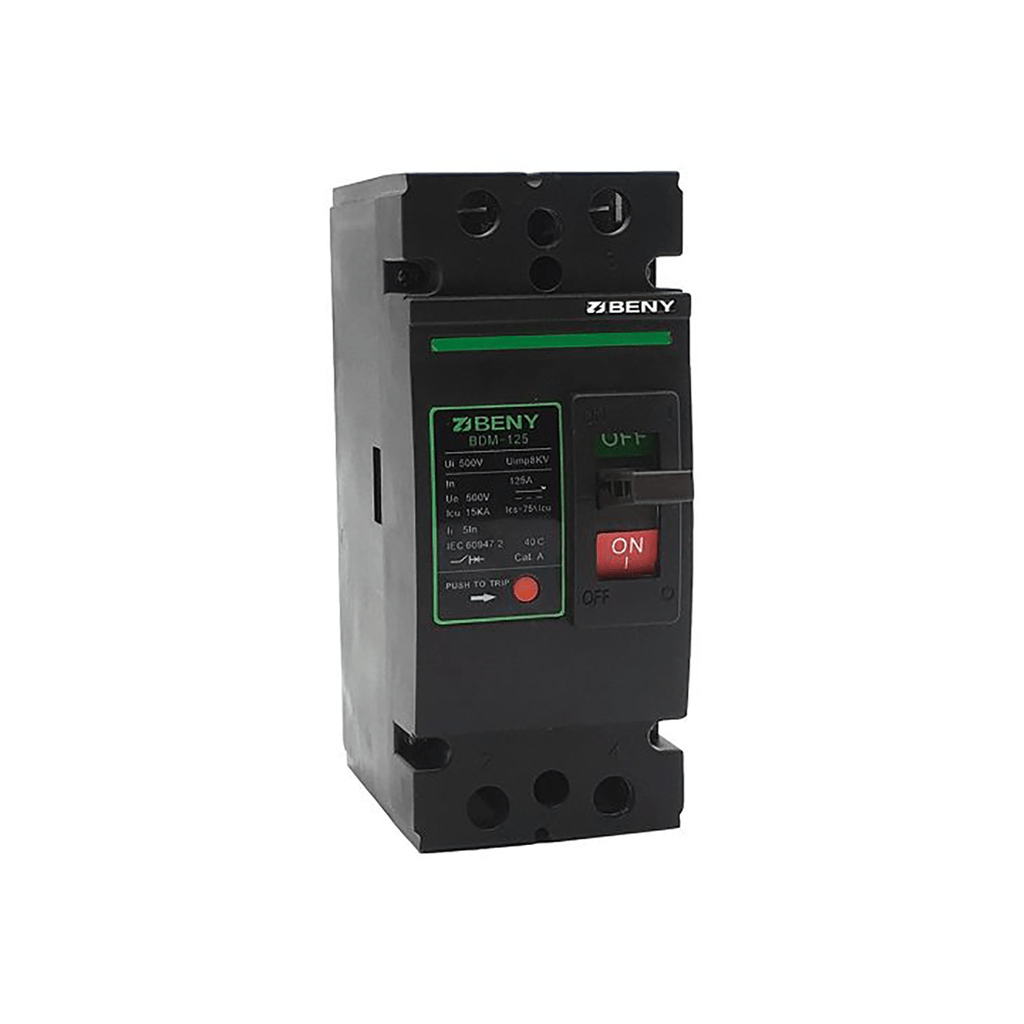

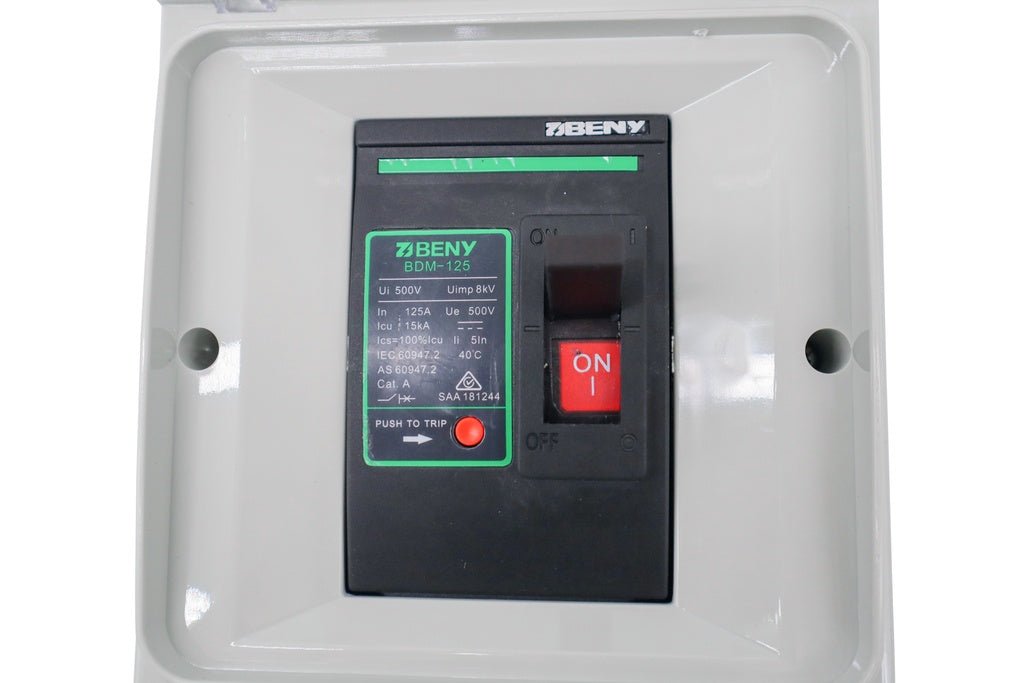

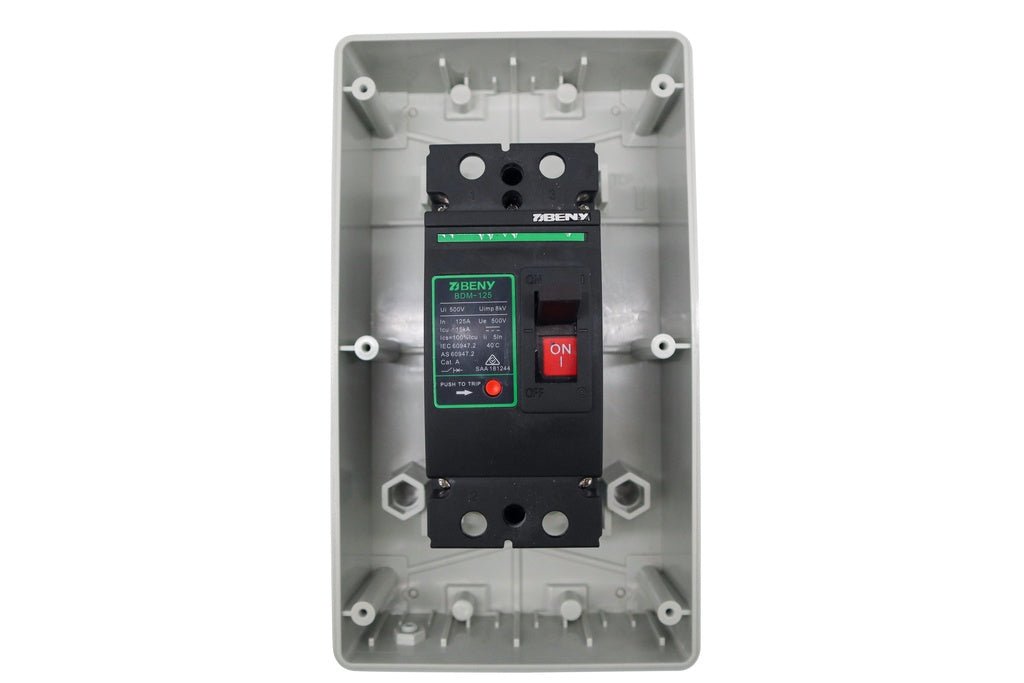

xBeny BDM series moulded case circuit breaker:
ZJ BENY BDM series PV DC moulded case circuit breaker (MCCB) are mainly used in large solar power systems which are applied for solar DC combiner box, inverter and DC power distribution cabinets. Rated voltage up to 500V DC, current up to 250A, with the function of overload protection and short circuit protection.
Features:

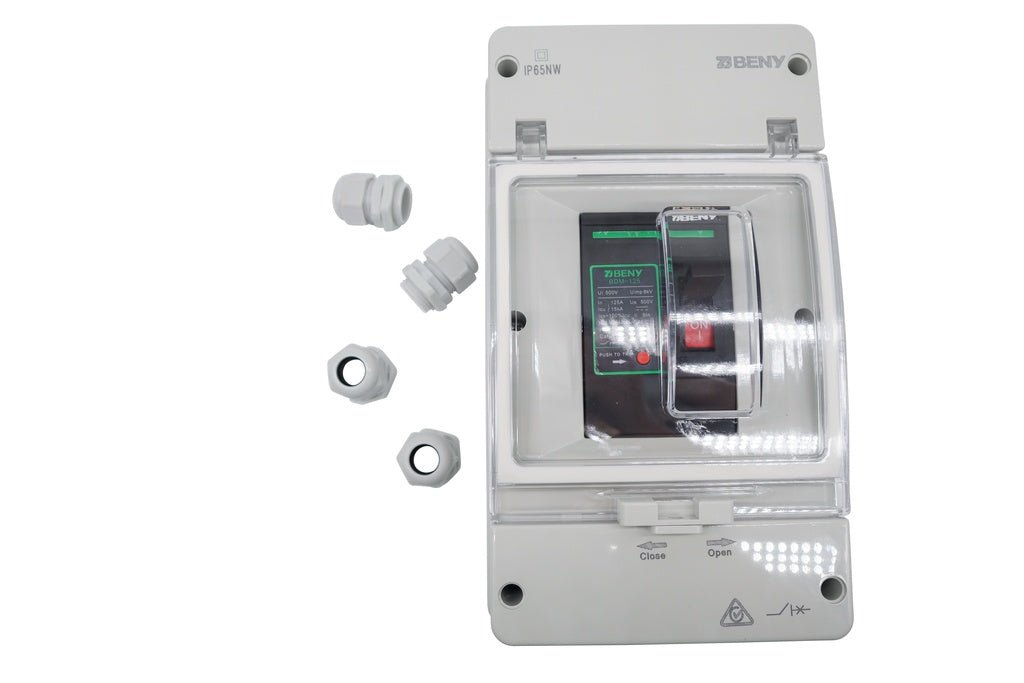

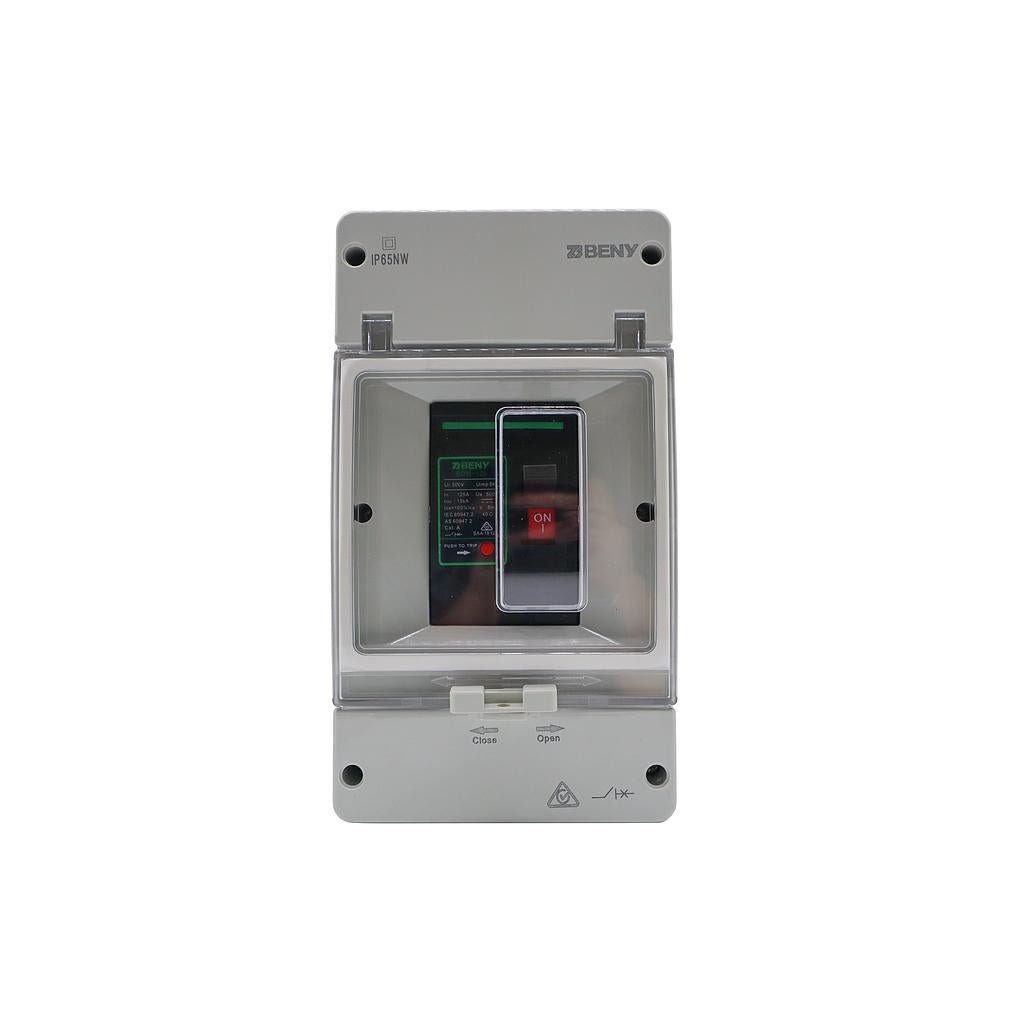

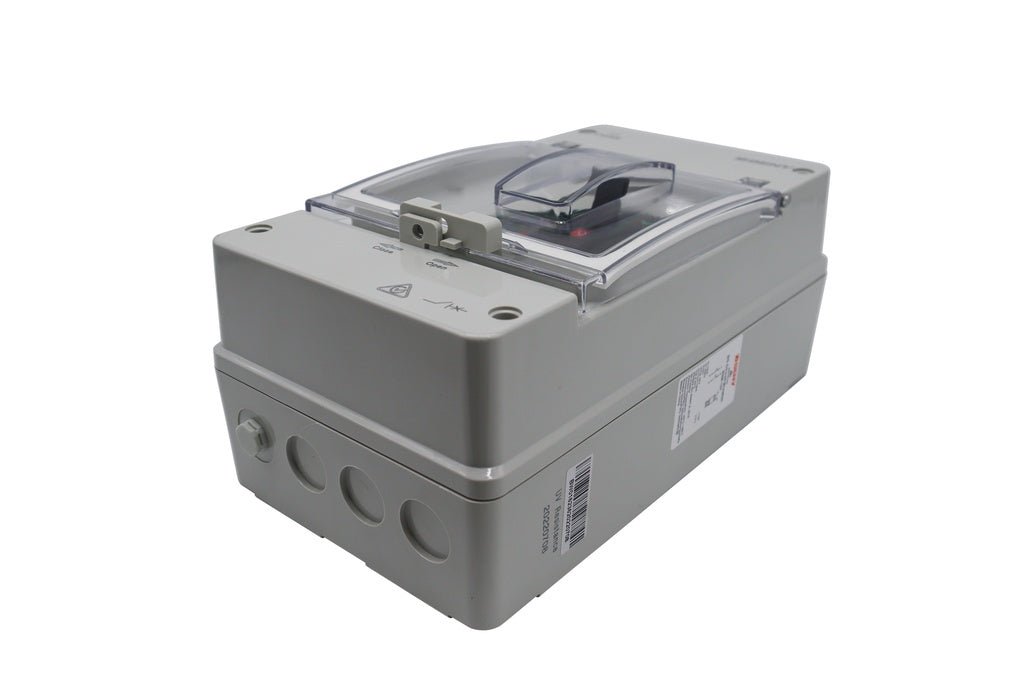

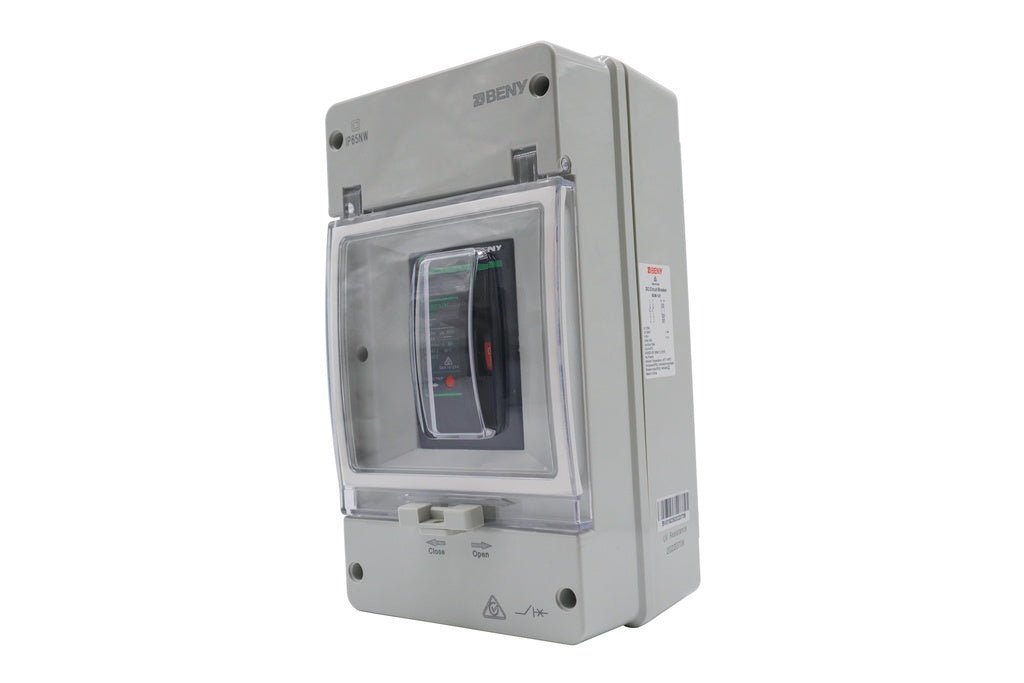

- IP65 UV resistant enclosure for outdoor or indoor installation
- AS60947.2 and IEC 60947-2 standard
- Protection functions; Overload, short circuit, unfrequent operation
- High short circuit / breaking capacity

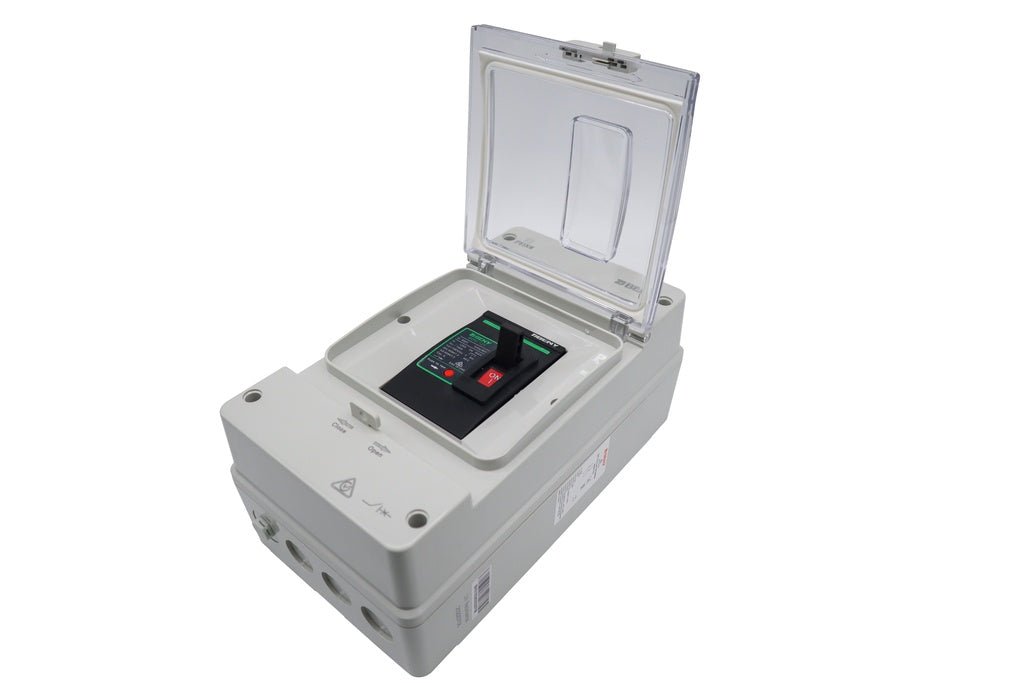

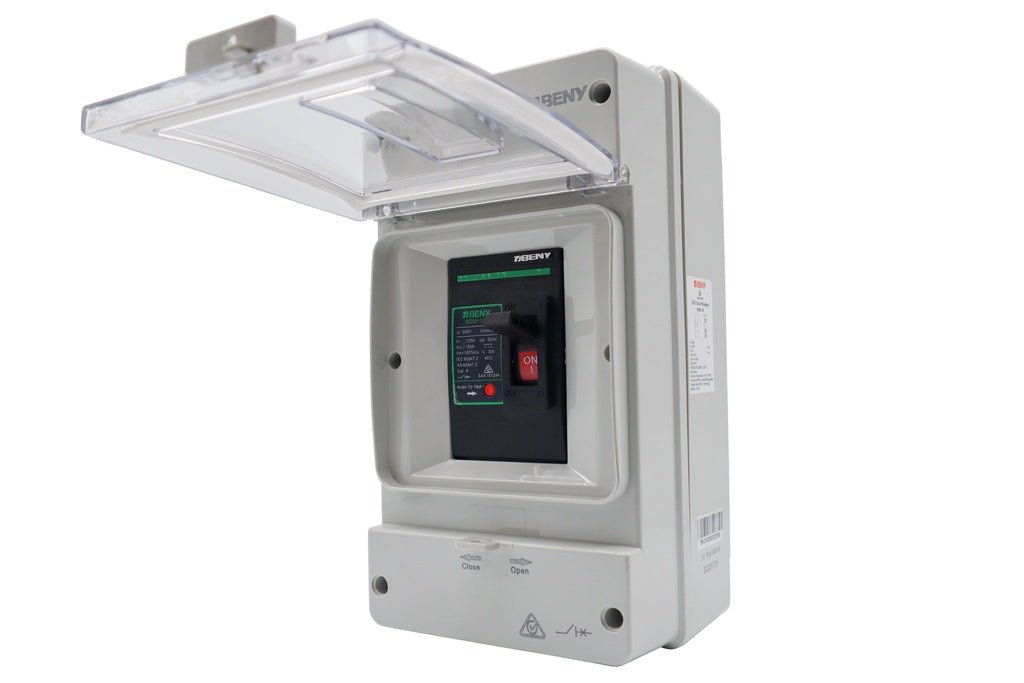

- Lockable transparent cover
- Rated voltage up to 500V DC
- Tested to extreme conditions -40 - +85 degrees Celsius
- Rated current 125A , 160A & 250A
Applications:
- Marine
- RV's
- Caravans
- Off-Grid Systems
- Tiny Houses
- Cabins
More about ZJ Beny:
BENY New Energy, founded in 2011, is a global leader in manufacturing protective components for the renewable energy industry. With a wealth of experience and expertise in the field, the company provides value at every level of the solar supply chain, catering to homeowners, businesses, electricity producers, and renewable energy investors worldwide.
In addition to its protective components business, BENY is also a leading provider of EV chargers and microinverters. Leveraging its 30-year track record of power electronics technology, the company is well-positioned to design and manage durable and reliable charging products. BENY's integrated charging solution features high protection capability, premium efficiency, and many other user-friendly innovative technologies.
Product Details- Brand: ZJ BENY
- Model: BDM-125
- Poles: 2
- Standard: IEC60947.2, AS60947.2
- Utilization Category: DC-21B
- Rated Operational Voltage: 500V
- Mechanical Cycle: 10,000
- Electrical Cycle: 2,000
- Protection Degree: IP65 Enclosure
- Polarity: No Polarity
- Certificate: SAA / TUV
- Storage Temperature: -40 to +85ºC
- Dimensions (L x W x H): 150.5 × 64.5 × 119 mm

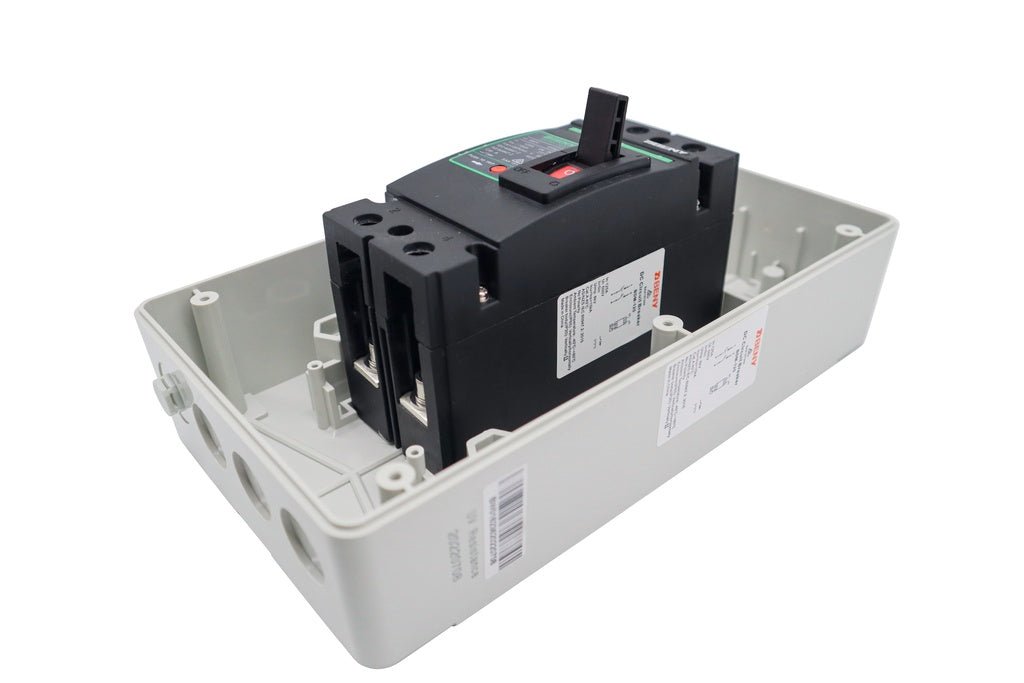

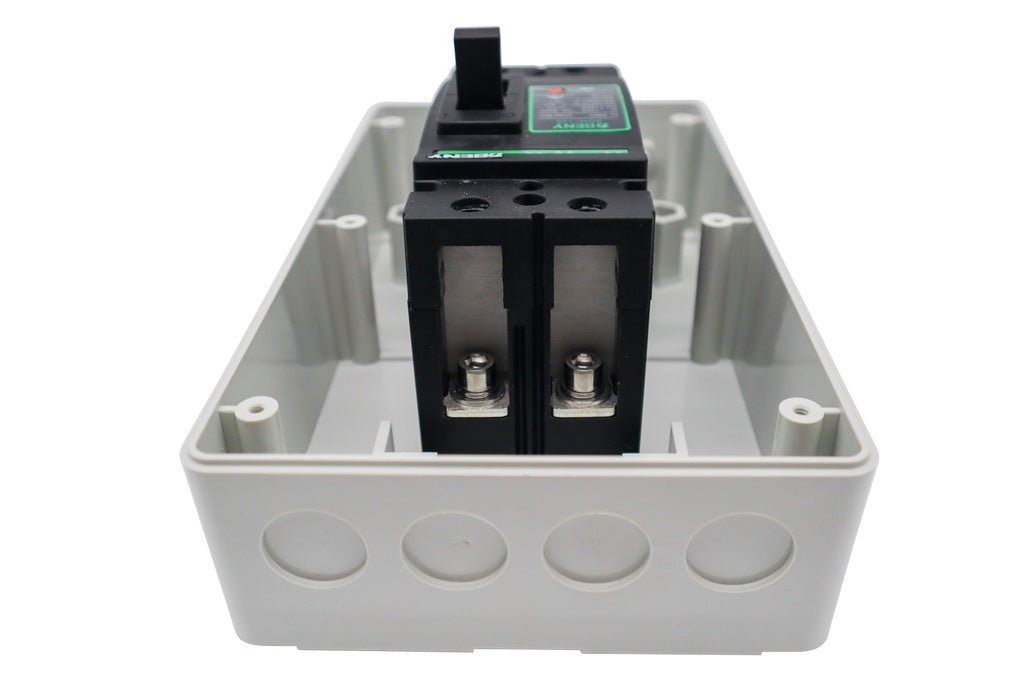

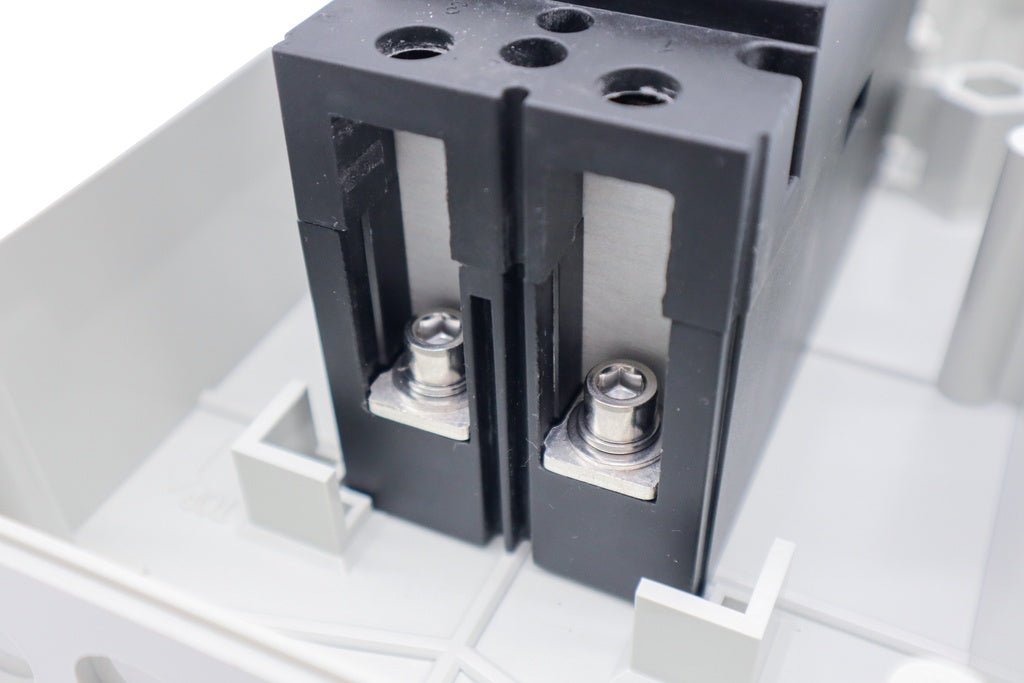

- Type of Terminal: Allen Screw Terminal (8MM)
- Suitable Environment: Indoor / Outdoor
